Colorful Acrylic Aggregate W/ DC-103

DC-103-GC-AP™ & DC-103-EC-AP™ Acrylic Aggregate Spayers

Back to Gallery

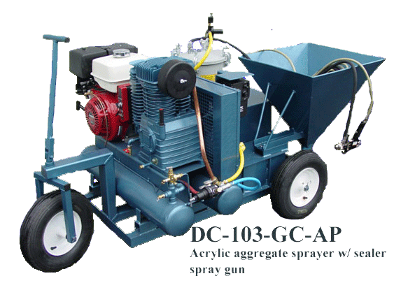

DC-103-GC-AP™

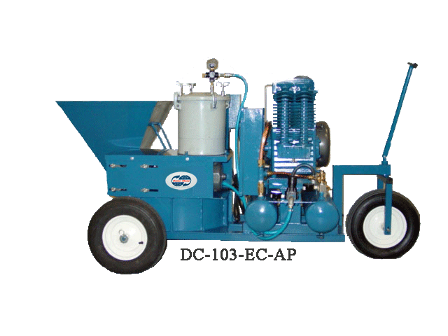

DC-103-EC-AP™

                    Acrylic Aggregate Spayers with onboard Compressor and Optional Sealant Sprayer

Specifications:

Type: peristaltic

Pump size: 1.5”

Transfer line: 1”-1.25” (spraying/ pumping) to 1.5” (pumping/ spraying)

Weight: 485 lbs.

Power: 115vac 15-20amp 50-60Htz (standard, other power options available)

Air consumption: 11cfm @ 80psi (air is only used if spraying material)

Mounted Compressor: 24.4 cfm displaced @100psi/ 19.2 cfm delivered@100psi

*Head Horiz.: 75ft

*Head Vert.: 25ft

Pumping volume: Variable speed min. 0-80 lbs per min. /0-4800 lbs per hr.

0-2.8 cu yds per hr

 Acrylic Aggregate Application System, with lot's of available options.

 Ship's stock plug and play ready with 25' of 1.25" transfer line and spray nozzle.

* Heads vary on transfer hose size and materials being used

Back to Gallery

 This Pump/ Sprayer was designed to Spray Acrylic Aggregate Coatings as well as Spray the Coating Sealers

                       An All in One Mobil Pump/ Sprayer
