MXVRR-1A (MX1-Midi) High Shear Mixer

Back to Gallery

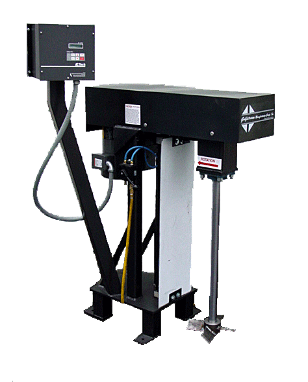

MXVRR-1A (Midi) Variable Speed High Shear Mixer 200lb cap. 15gal.

This is a very unique High Shear Mixer, it was designed to be upgraded as needed and can reach a max batch capacity of 400lb. / 30 gal.. It has a heavy duty style framework as all of our large High Shear Mixers, but in starting off at a lower batch capacity, "You can start off at a lower cost" allowing you to grow at your speed without allot of initial cost. A favorite of smaller start ups and counter top types shops.

Specifications

Drive: Variable Speed Frequency

Speed: 0-1100rpm (ask about spec's for certain materials)

HP: 3hp, *5hp, 7hp, 10hp

Capacity: 45lb. to 400lb (*200lb 15gal.)

Mount: 1/2" A-36 stable steel plate base.

Carriage Mount: 3 point stance, mechanical guide tubes

Lift: 1/ 3-1/2” high flow air rams

Powerband: 3G

Main Shaft: 1-3/4" 4140 Chromed Chrome Moly

Blade: Quad Prop 4140 (other blade styles avaiable)

*Standard Build

This mixer was designed to grow with your company!!!

GFRC, GFRG, PVRC, Concrete, Mortar, Epoxy Aggregate, Acrylic Aggregate, Dry Blends, Paint, Fireproofing, etc...
